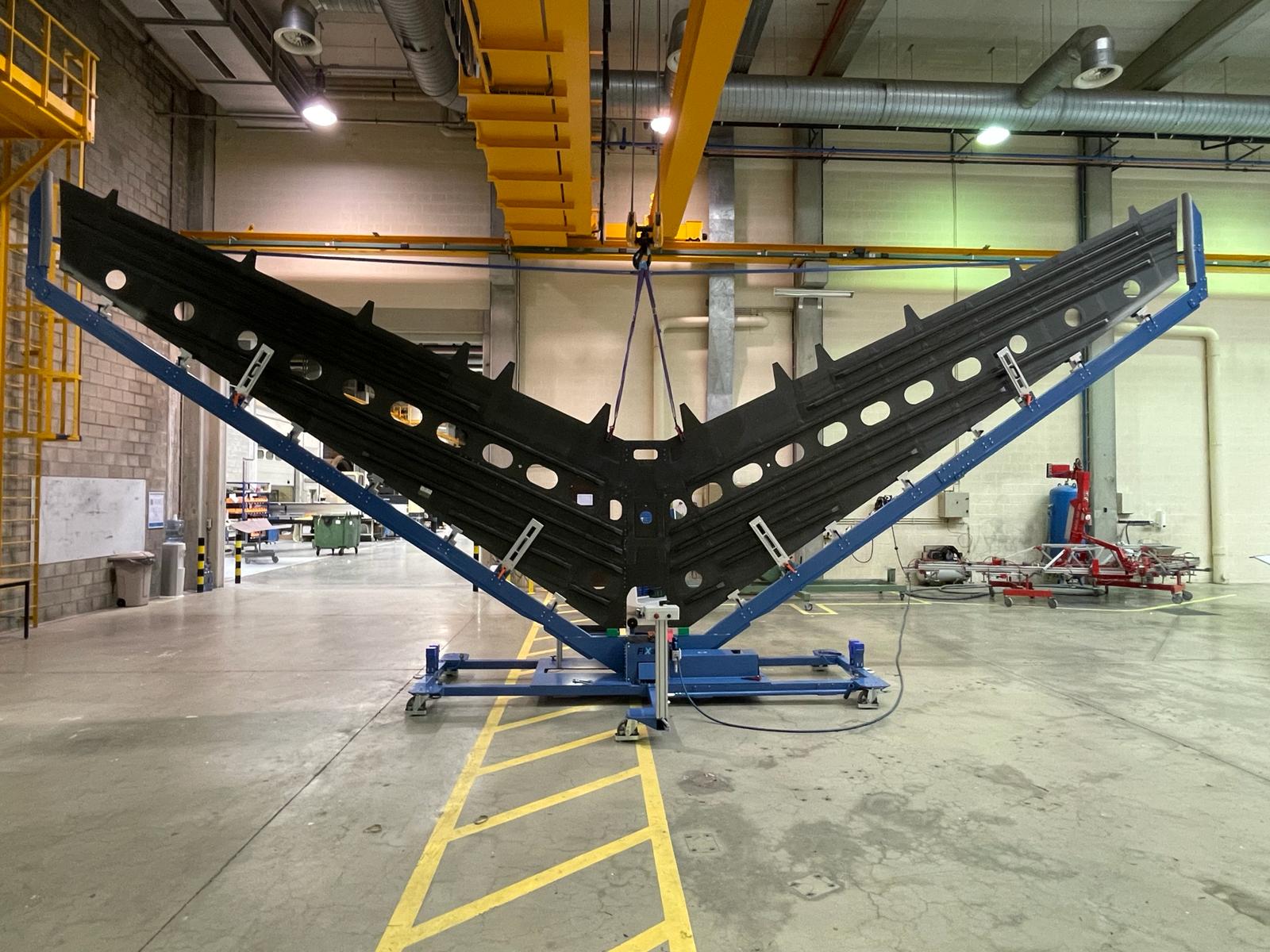

Ergonomic assembly fixture for aircraft wing structures equipped with a rotation system that enables safe and efficient ground-level assembly operations on both sides of the wing.
FiXar developed an advanced assembly fixture for aerostructures, specifically designed to support the assembly of aircraft wing components with a strong focus on ergonomics, operator safety, and manufacturing efficiency.
The fixture incorporates an integrated rotation system that allows the wing structure to be positioned for optimal operator access during assembly operations. By rotating the wing when required, operators can perform assembly tasks on both sides of the structure while remaining safely at ground level. This eliminates the need for elevated working platforms and significantly improves workplace ergonomics and operational safety.
The system enables controlled one-side-at-a-time positioning, ensuring stable and secure access throughout the assembly process. This approach enhances operator comfort, reduces physical strain, and contributes to more accurate and consistent assembly execution.
Designed for demanding aerospace manufacturing environments, the fixture provides high structural rigidity and precise positioning of the wing assembly during all production stages. Its robust construction supports repeatable assembly processes while maintaining the dimensional accuracy required for aerostructure manufacturing.
By combining ergonomic design principles with reliable mechanical positioning, FiXar delivered a highly efficient assembly solution that improves operator accessibility, production quality, and overall manufacturing performance in aerospace assembly applications.
